Cabling infrastructure is the backbone of the interconnected society. There is no traffic without roads, there is no Internet without cabling.

In Finland there is talk about "road debt", but no talk about "cabling debt". Mainly because most of the telecommunications cabling has been installed by privatized companies (previously owned by the government).

Talking about expected lifecycles of cabling infrastructures

  • Copper cabling, decades
  • Fiber cabling, centuries

Basic infrastructure of cabling

The figure below represents the basic principles & topologies of the cabling infrastructure in our society. No matter the physical media.


These "distribution facilities" have been established through the decades of wired telephony infrastructures.

Campus Distribution

Device side


Subscriber side


Fiber cabling cross-connections


Building distribution






Floor distribution


Consolidation point (or apartment distribution)


Copper Cabling

Copper cabling is divided into categories (with the exception of coaxial cabling) in the (SFS-)EN 50173 -standard series concerning Generic Cabling Systems.

These categories are gone through here.

Category Channel Class Maximum speeds
Category 3 (phone cabling)​ 16 MHz Class C​ below 100Mbit/s, depends on length
Category 5​​ 100 MHz ​ Class D 100Mbit/s
Category 5e​​ 100 MHz ​ Class D 1Gbit/s
​Category 6 ​250 MHz ​Class E​ 1Gbit/s
​Category 6A​ ​500 MHz​ ​Class EA​ 1Gbit/s
​Category 7​ ​600 MHz ​Class F​ 10Gbit/s
​Category 8.1​ ​2000 MHz​ ​Class I​ Up and coming standards for 25Gbit/s / 40Gbit/s
Category 8.2​ ​2000 MHz​ ​Class II​ Up and coming standards for 25Gbit/s / 40Gbit/s

Twisted pair cables reduce electromagnetic interference (called noise)

Physics course will teach you about eletromagnetic waves produced by the transmission of current. And how those waves are received by nearby cables.

Category - 3 (CAT3)

Category 3 cable


Range: depends on technology

  • 5 kilometers for Plain Old Telephone System (POTS)
  • 5 kilometers for ADSL
  • 2 kilometers for ADSL full-rate
  • hundreds of meters for VDSL


RJ11 - male adapters, connection cable


Phone adapter - with RJ11 female adapter



Typically installed on Krone LSA-PLUS connectors.



The wires are connected with use of a special tool:

Krone Impact Terminal Tool


Category - 5 through 7 (CAT5 - CAT7)

CAT6 U/UTP Cable

CAT6 U/UTP Cable

Range: Typically 100 meters

  • 10 meters for tail cabling
  • 90 meters for ceiling/wall cabling


ISO/IEC 11801 designation[A] Cable shielding Pair shielding
U/UTP None None
U/FTP None Foil
F/UTP Foil None
S/UTP Braiding None
SF/UTP Braiding and Foil None
F/FTP Foil Foil
S/FTP Braiding Foil
SF/FTP Braiding and Foil Foil

Letter before the slash indicates shielding of the cable. Letter after the slash indicates the shielding of individual pairs. TP is always Twisted Pair.

  • U – unshielded
  • F – foil shielding
  • S – braided shielding (outer layer only)
  • TP – twisted pair
Unshielded - Unshielded Twisted Pair - U/UTP


Foil shield / Foiled Twisted Pair - F/FTP


Braided Shielding / Foiled Twisted Pair - S/FTP



RJ45 -connector, one of the most common data network connections today

!RJ45 connector

RJ45 -connector pinout



Wall Box for Telecom Outlets in rooms.

Wall Mount Box Cat6 2xRJ45


  • Note! Two Telecom outlets with RJ45 cables attached to them on (on both sides)

Typically have Rack -installation in Floor Distribution.

24 port patch panel for RJ45


Coaxial Cabling

Coaxial cabling is most often used in Television distribution networks and always in place in Finnish households. Data Networks use Cable Modems (or EuroDOCSIS standard) for IP traffic over these tv networks

Indoor use

Coaxial cable - indoor


Outdoor use

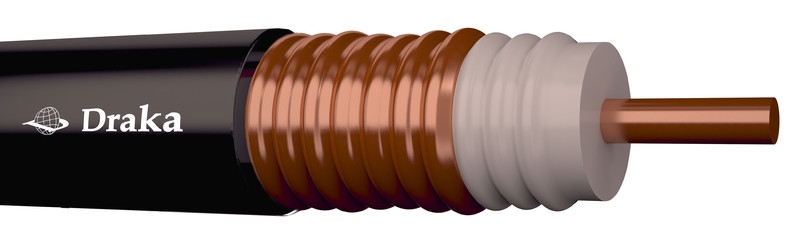

Cable-TV -network outside and channel cable


Fiber Cabling

There currently is no replacement for fiber cables in sight. Photons are the fastest way to transmit data and given the wavelengths of fiber cables, the bandwidth limit is in the electronics at the end of fiber cables. Rather than the cable itself.

How can your home be attached to a fiber network?

Fiber cabling is dangerous


Do not operate/install unless you know how to protect yourself.

Do not point them towards your eyes!

Single Mode Fiber - SMF

Single Mode Fibers send their transmission in 1200nm - 1600nm wavelengths. Most commonly 1310 nm, but other wavelengths do exist in transmission through wavelength division multiplexing techniques.


These fibers have lengths from 10 to 80 km on typical hardware designed on land. (Thousands of kilometers when seacables and electronics are discussed.)

Multimode Fiber - MMF

Multimode fibers exist because they are chepear to produce. They are a typically a within building solution, but are less frequently installed.

Multimode uses the wavelength of 550nm

Wavelengths? Electromagnetic spectrums? What?

Whole Electromagnetic Spectrum



Adapters for fibers are of different sizes and formats based on usage.

LC -adapter - Maybe the most common attachment in devices.


SC -adapter - Maybe the most common attachment in patch panels.


There are FC and ST adapters, but their usage is fading out



Cross-connection / Patch Cables

FMS OS2 OS2 LC/LC/1/2m

So a cross-connection cable, with LC adapters on both ends, 1 fiber and 2 meters of length


FMS OS2 SC/LC/1/5m


Indoor cables

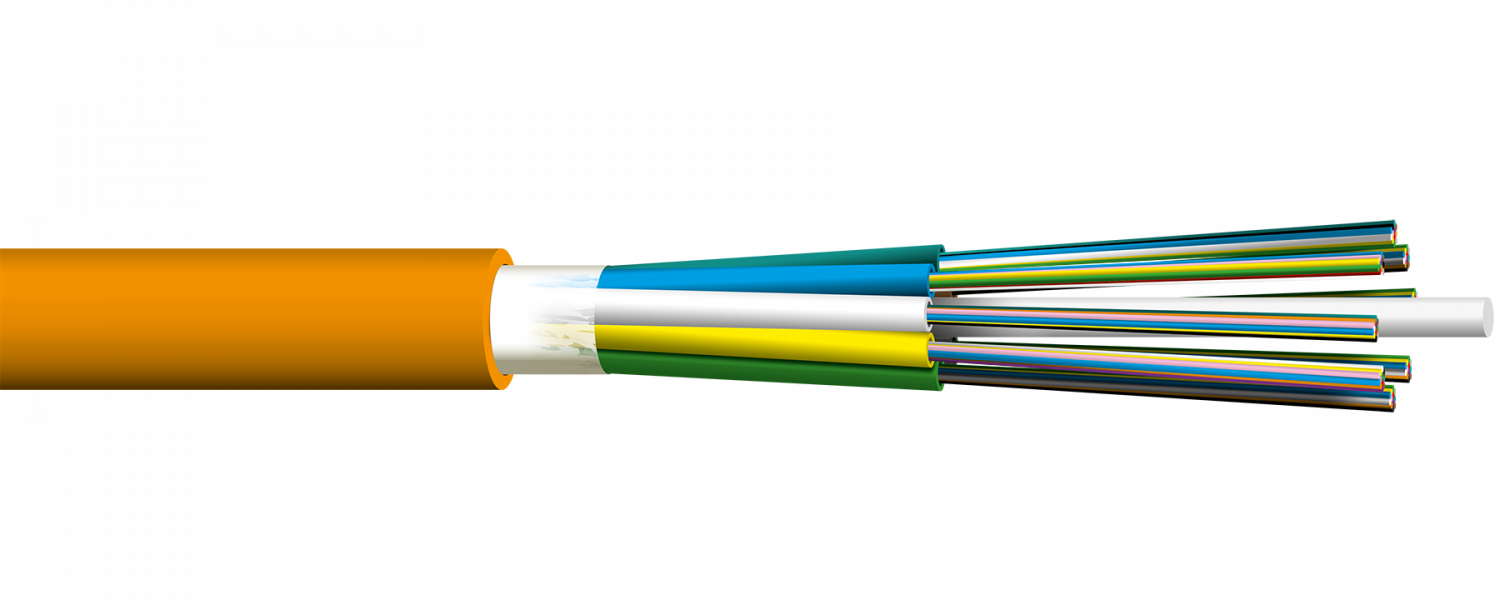

Fire proof indoor cable


Outdoor cables

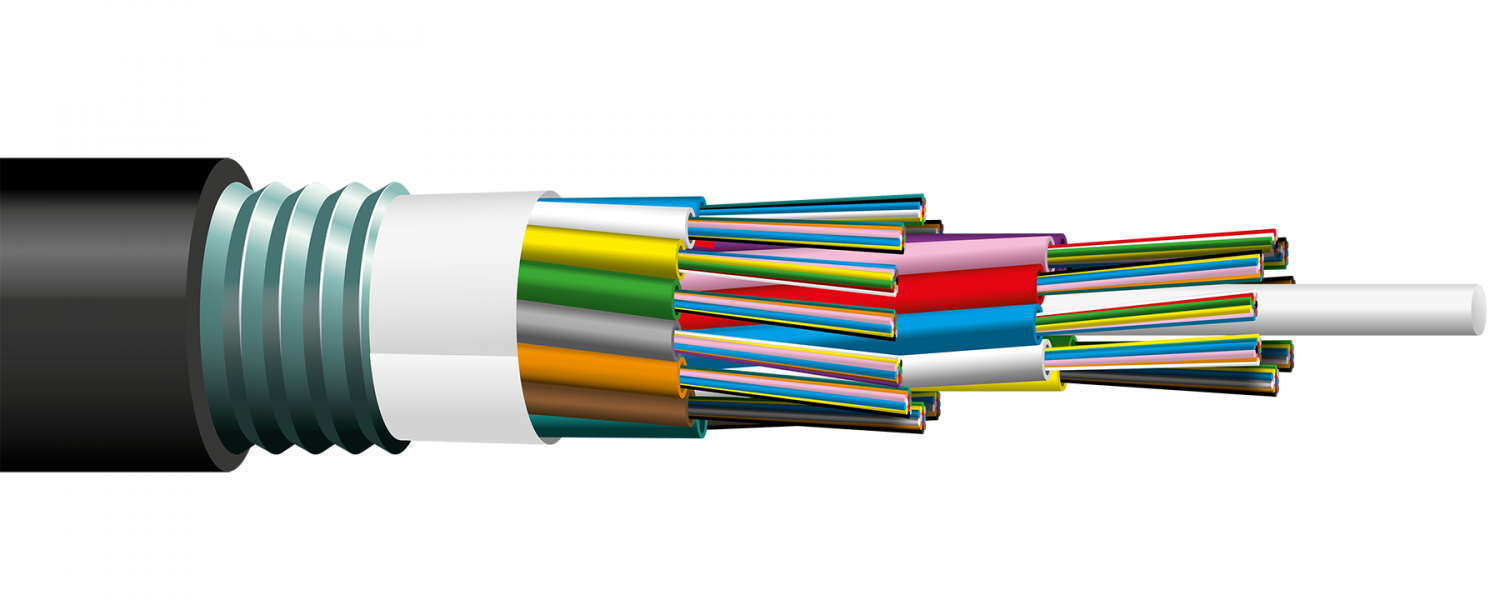

Outdoor cable


"One cable can withold 432 fibers"

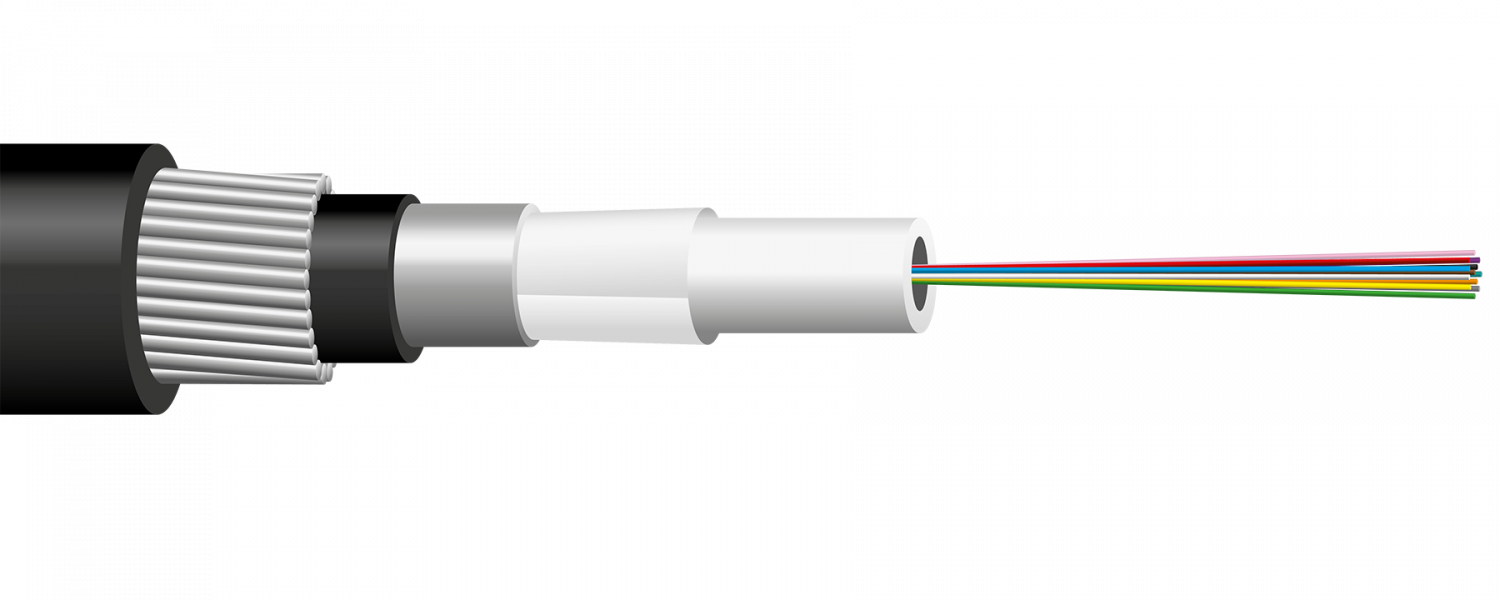

Seacable FYOHBMP 1,6MW


"1.6mm^2 steel wire armoured cable for sub-water installations. Can withold either 12, 24, 48 or 96 fibers."

More on Submarine cables?


"Starting from the first transatlantic optical cable system with a single-channel per fibre pair at 280 Mbit/s in 1988, the evolution of the technology has arrived at DWDM systems on transoceanic links with a capacity of 128 × 10 Gbit/s per fibre pair."


Typically a 24 fiber patch panel installation to 19" racks.

24 -port SC adapter fiber patch panel


Example 2


196 Fiber cross-connection



Fiber welding on the left and a ground installable extension box.


Closer look at NC-450 extension box


TBK-8 extension box



Data Network devices are robust hardware, but also have an technical lifecycle.

Approximate average lifecycles (depending on use) for different devices:

  • Mobile phones, 2 years
  • Computers, 3 - 6 years
  • Laptops, 2 - 5 years
  • Network devices, 6 -10 years

Of course these are just estimates of average life cycles, but devices have to be renew'd from time to time. Either to have replacement parts or get new technology into use for the organization (e.g. Software-Defined Networking).

We start our journey from old to new.

Hub / Repeater

Be it electric current in wires or photons in fiber connections, signals attenuate while traversing through the cabling.

This means that repeaters are needed to enhance the transmission. Repeater's have been present a long time, that is why the term 'broken-phone' is familiar even as a kids game.

Single Morse Repeater


Ethernet repeater - copper cabling


Ethernet repeater - fibre cabling


"Submarine fiber has attenuation. Repeaters are used for optical signal amplification. Repeaters are placed every 60km to 70km."

Multiport Ethernet repeater - or an 'Hub'


Hubs and repeaters are excellent for investigating network traffic through packet sniffers. And this introduces us to...

TAP / Network Sniffer

It is illegal to interfere & read communications in Finland!
5 § Vaitiolovelvollisuus ja hyväksikäyttökielto

Se, joka on ottanut vastaan tai muutoin saanut tiedon luottamuksellisesta viestistä tai tunnistamistiedosta, jota ei ole hänelle tarkoitettu, ei saa ilman viestinnän osapuolen suostumusta ilmaista tai käyttää hyväksi viestin sisältöä, tunnistamistietoa tai tietoa viestin olemassaolosta, ellei laissa toisin säädetä.


Because we can repeat signals, we can also do multiport repeaters where, - One port for incoming transmission - One port for outgoing (amplified) transmission - One port for "tapping" into the transmission (read: eavesdrop)

As mentioned, these are great for learning networking, but at wrong places they are also harmful/illegal.

The equipment still exists.

1-Link LC Fiber TAP


Ethernet copper cabling TAP's



Communication cables have modulations to improve efficiency in transmission (bandwidth, signal to noise ratio, electromagnetic spectrum usage). This means that there have been a lot of modems throughout the ages, and more are in development.

The kind of modem depends on what kind of electromagnetic spectrum is used and what transmission medium is at hand (air, copper cable, fiber cabling).

My old modems 28.8k, 56.6k and an 14.4k -modem



Switches are the most common network equipment in buildings equipped with physical copper/fiber ethernet cabling.

Physical Switches

Switches span across modular to fixed size switches. From small needs to bigger enterprise needs.

HPE 1820-8G Switch for home/office use


  • Source HP
Extreme Networks X460-G2 -network edge switches


Aruba Networks 5400R -series modular switch


Storey buildings in Finland

Almost all households have a switch in their Mains room (fi: Sähköpääkeskus) that is operated by an ISP.

Industrial buildings in Finland

Also different industry buildings (such as IT-Dynamo) has switches in their cabling racks.


Wireless Basestations

Most of our communications at the network edge are moving towards wireless technologies such as 4G / 5G or WLAN. This still means that the wireless section of the transmission is just

  • WLAN, hundreds of meters
  • 4G / 5G, kilometers

These distances are of course adjusted by the used frequencies, directional antennae, line of sight and weather conditions. All of them affect the spreading of the electromagnetic spectrum. And thus cause instability for user connections.

a rural basestation building with antennaes on top


Quite often the most commonly recognized device by consumers is the WLAN / Modem / Router / Firewall box. This thing is used by most consumers and thus is really competetive market. Thus the box has all the functionalities crammed into one, but with consumer-grade life-cycle, manageability and replaceability.

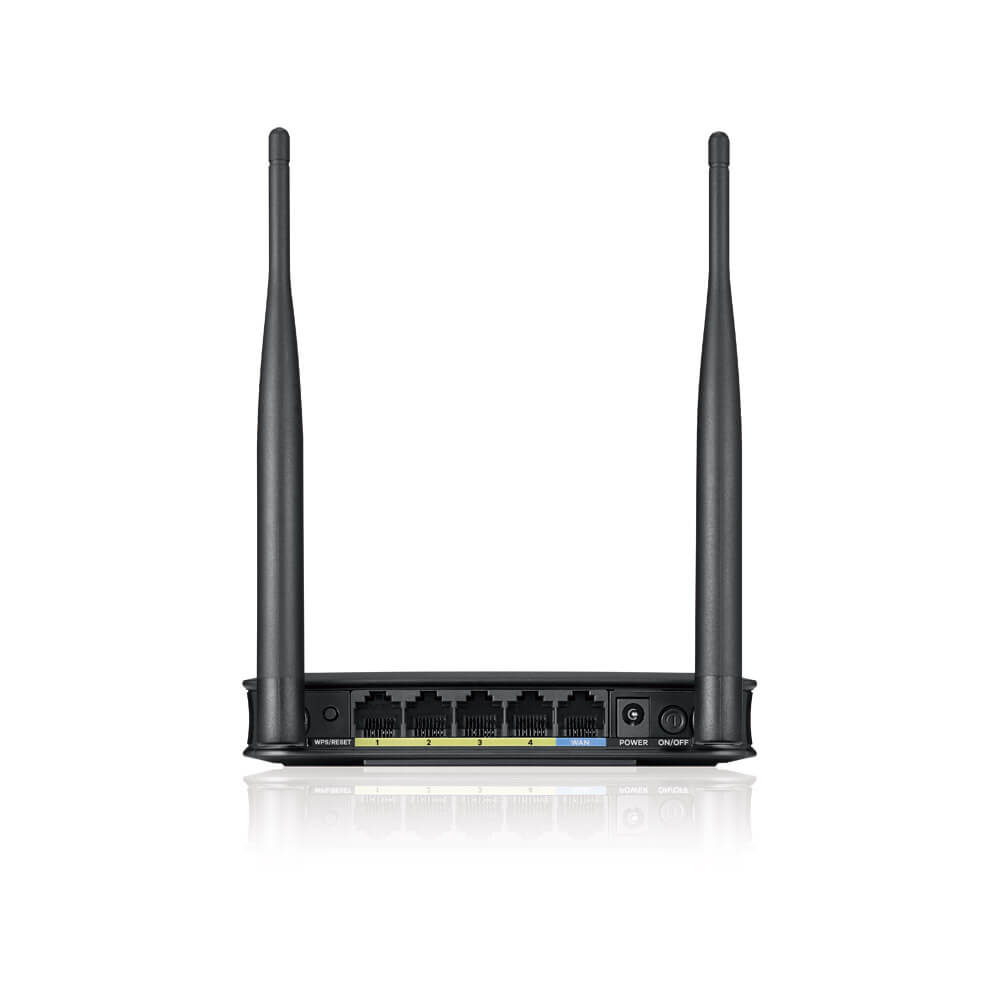

Wireless WLAN basestation



Commercial grade routers are the backbone of the Internet. Given the term they connect to the Internet with multiple different WAN options keeping sites alive through dynamic routing.

Cisco 5000 Enterprise Network Compute System Family



Firewalls are typically L3 routers, but with enhanced traffic inspection capability. They have the ability to enforce Firewall policies which;

  • Deny
  • Permit
  • Reject, deny and send a TCP RST or an ICMP port unreachable message to the source host
  • Encrypt/decrypt (direct into a VPN)
  • Authenticate (e.g. enforce web portal authentication)
  • Prioritize (Input Quality of Service markings such as TOS or DSCP)
  • Schedule (insert the traffic into a traffic queue for a scheduler to handle)
  • Filter (scrap stuff out from the packet)
  • and monitor (log the traffic)

All of these give the network administrator capability to enforce security into a network. They are typically stated as perimeter (cybersecurity) defence, but it is really a matter of planning and placement of firewalls.

Paloalto PA-220

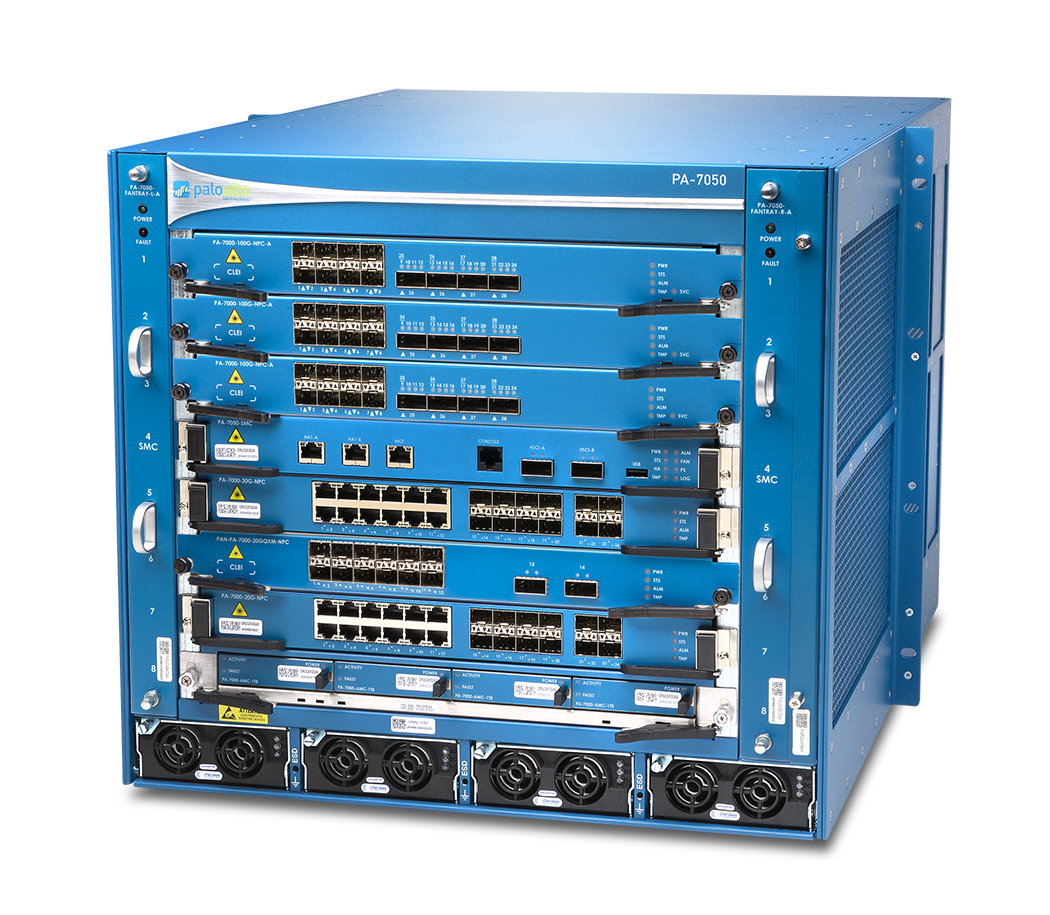

Paloalto PA-7050


Cisco Adaptive Security Appliance (ASA) & Firepower Series


Rack's / Device Cabinets

Typically network devices are installed to separated rooms


  • Floor distribution
  • Building distribution
  • or even a Data Center in itself

These environments need a sturdy installation cabinet, usually called racks. The type of rack depends on usage/purpose.

Network devices are required to be behind locks by the Finnish Transport and Communications Agency

Suositus 306 / 2019 Kiinteistöjen laitetilojen lukitus

Kiinteistön sisäverkko

Generally on Rack Unit(s)

The Rack is divided into Rack Units (RU's or typically just "U's", e.g. 9U).

The Rack Units in Europe are typically 19 inches in width (482,6mm)

Height of 1 Rack Unit = 1,75 inches = 44,45mm

The problem of cabinets is

  1. Cooling
    • Network Devices & Servers produce heat
  2. Cabling
    • Quite often the devices need a Data Network and electricity

Wall Cabinets

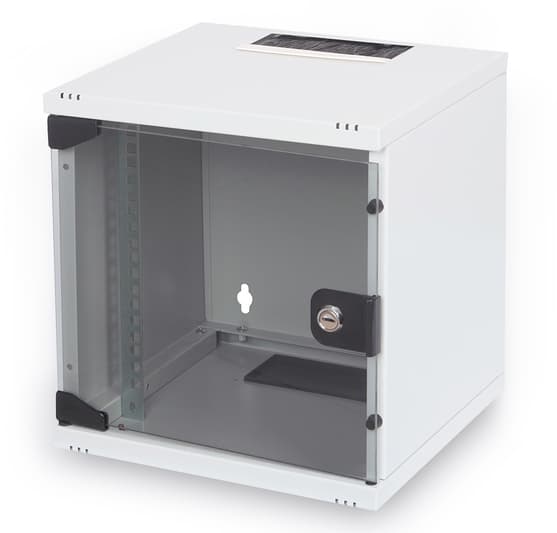

Digitus 6U 10" Wall Cabinet


Floor Cabinets

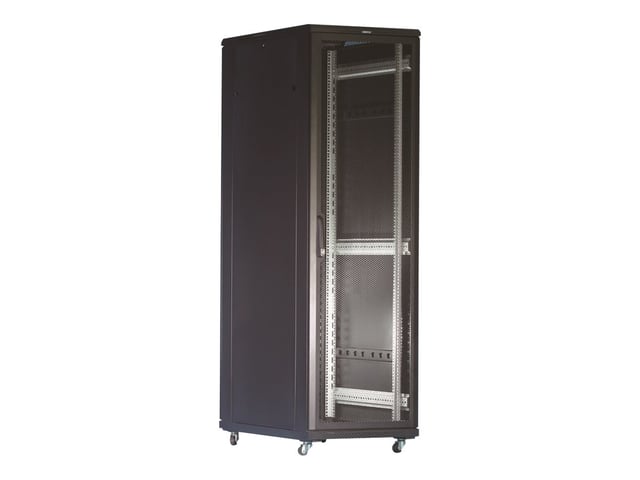

Toten G3 19" Floor Cabinet 18U 600X800 Perforated Door


Full size Cabinets

Depth 600, Width 600 (600x600)

This cabinet width allows more cabinets into a room, but with less cabling & cooling space.

600x600 19" Rack Cabinet with heights between 24U to 42U


Depth 600, Width 800 (600x800)

Wider cabinet (800) gives room for cabling and airflow on the sides

600x800, 19" Rack Cabinet with heights between 24U to 42U


Depth 800, Width 800 (800x800)

Typically the biggest cabinet size. Allows cabling paths and air flows to travel within the cabinet.

800x800, 19" Rack Cabinet with heights between 24U to 42U


Additional installation hardware


Rack installable SCHUKO -plugs



Shelf for 19" racks with max 60kg weight


Completely extra materials

These videos will probably be subtitled in english... at some point or another

Keski-Suomen Sairaanhoitopiiri - Sairaala Nova - ICT -luento, JAMK / IT-instituutissa 26.11.2019

Video starts with the data network -related section:

Microsoft Stream (sharepoint) video

Ramboll - Sairaala Nova - sähkösuunnittelu (tietoliikenne) uuteen sarairaalaan, JAMK / IT-instituutissa 10.12.2019

Video starts with the cabling documentation ...

Microsoft Stream (sharepoint) video
